1、 Definition and scope of application of diamond reamer

Diamond reamer, also known as diamond honing reamer or honing rod in the industry, has no cutting teeth and mainly relies on "grinding" to complete processing. It is a new process formed by combining ordinary honing with conventional reaming technology. Processing steps: rough and fine; Processing materials: gray cast iron, ductile iron, some steel parts; Application hole types: through-hole, blind hole, stepped hole.

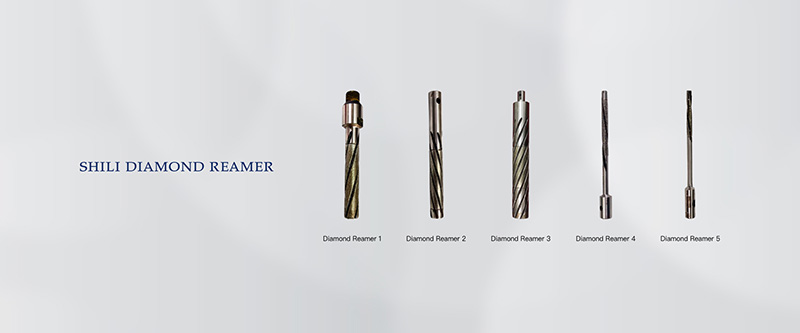

2、 Classification of diamond reamers

1. Characteristics of superhard fixed diamond electroplated reamer:

Fixed blade size: The size and shape of the blade are fixed and cannot be adjusted. Suitable for hole processing of specific sizes and shapes.

High rigidity: Due to its simple structure and lack of adjustable components, the overall rigidity is high, making it suitable for high-precision and high rigidity machining applications.

advantage:

High precision, suitable for processing specific specifications of aperture.

The tool structure is simple and the manufacturing cost is low.

2. Adjustable diamond electroplated reamer features:

Adjustable blade size: The blade size can be adjusted as needed to accommodate hole machining of different sizes and shapes.

High flexibility: By adjusting the structure, it can quickly adapt to different processing needs.

advantage:

Capable of processing various specifications of aperture, with strong adaptability.

Suitable for production environments that require frequent replacement of tool specifications, saving tool replacement time and costs.

summarize

Fixed diamond electroplated reamers are suitable for batch production of specific size holes and have the advantages of high rigidity and high precision. Fixed diamond reamers below 5mm are not recommended as the size is difficult to control, and grinding heads can be used instead to reduce costs.

Adjustable diamond electroplated reamers are suitable for multi specification and small batch production, with high flexibility and adaptability, but their structure is relatively complex. Adjustable diamond reamer below 7mm is not recommended, and there is currently no upper limit on the maximum diameter.

3、 Customization process of Shili superhard diamond reamer

Firstly, the customer needs to provide detailed information on the various parameters of the rollers, specific requirements for workpiece grinding, as well as the current use of grinding machines and their repair conditions. Next, the technical department of Shili will design the production drawings of the rollers based on this information and submit them to the customer for confirmation. After both parties reach an agreement and sign the purchase contract, Shili will start arranging production and ensure delivery according to the agreed time in the contract. Finally, the after-sales team of Shili will continue to follow up on the usage status of the rollers and provide necessary technical support and other after-sales guarantee measures.
